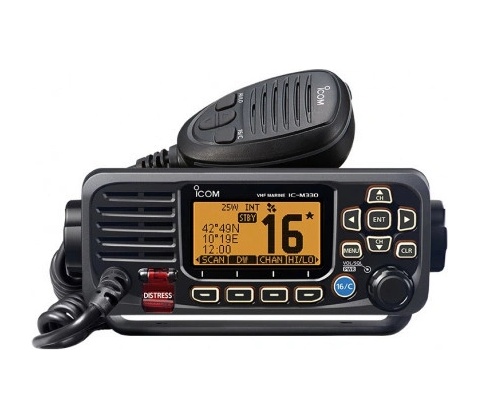

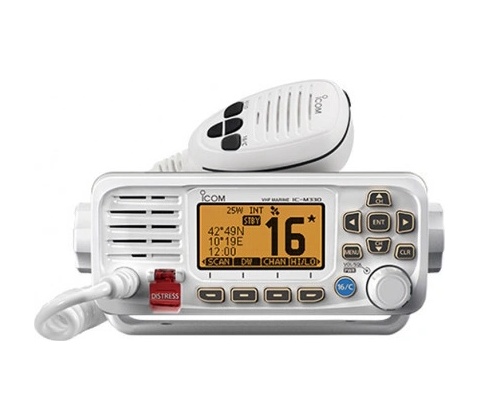

Icom IC-M330GE

VHF Fixed Mount Marine Radio, Small body

DSC Class D, AITS, Full dot matrix display, IPX7, Integrated GPS Receiver

Standard supply:

DC power cable, Mounting bracket, Microphone hanger, GPS antenna

Ultra Compact Body, Flexible Installation

The compact IC-M330E/GE measures only 156.5 (W) × 66.5 (H) × 110.1 (D) mm making it ideal for a cockpit where space is limited.

Installation can be carried out by means of the provided U-shaped mounting bracket (base / substructure) or with the optional mounting kit MBF-5 (for installation in an instrument panel; see above).

Intuitive User Interface

A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.

Class Leading Receiver Performance

The IC-M330E/GE’s receiver provides reliable communication in RF busy environment like a marina. (Selectivity and IMD: more than 70 dB)

Built-in Class D DSC

The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls

GPS Receiver Built-in (IC-M330GE)

A built-in GPS receiver provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. The acquired position information can be used for DSC calls.

AIS Target Call MA-500TR

When the IC-M330GE is connected to the optional MA-500TR Class B AIS transponder, the AIS Destination Call feature allows you to make an individual DSC call from the MA-500TR without manual MMSI number on the transceiver to capture.

Favorite channel function

The Favorites channel feature allows you to efficiently scan and fast channel selection. Add the desired channel (★ mark) to the preferred channels. The normal and priority scans search for active channels within the preferred channels. Use the UP / DOWN buttons on the microphone to toggle between preferred channels while skipping unmarked channels.
