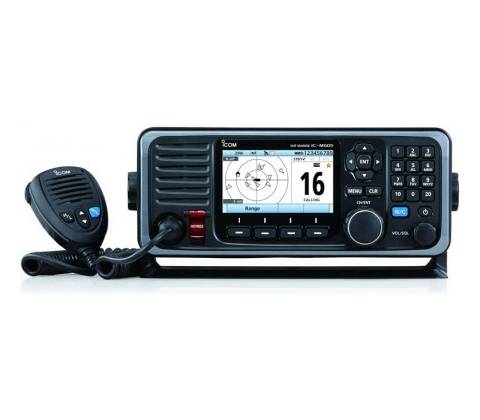

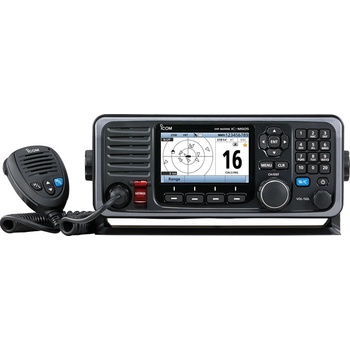

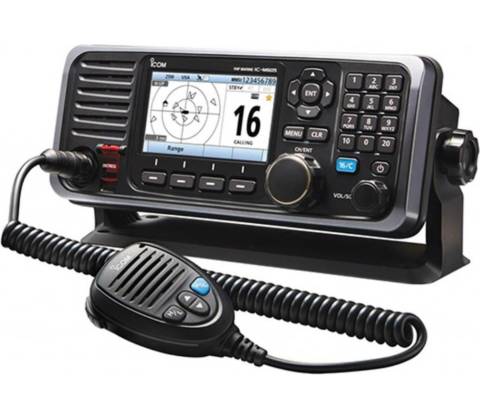

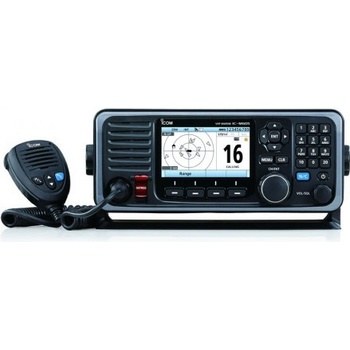

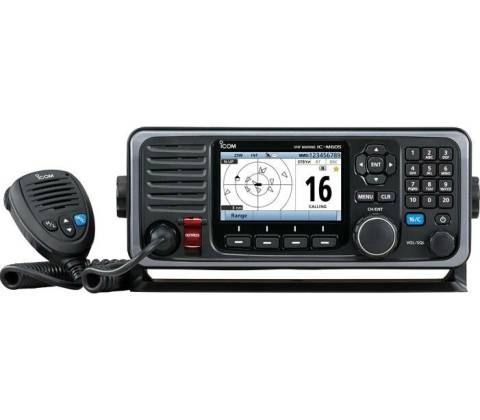

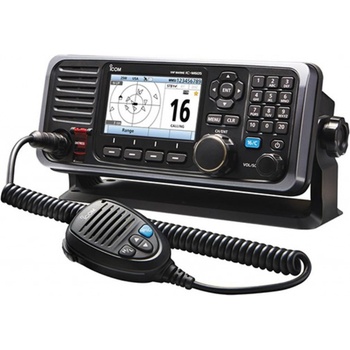

Icom IC-M605

Up to Three COMMAND HEAD/COMMANDMIC™

The IC-M605EURO is our flagship Class D DSC radio. The radio can be remotely controlled with up to three controllers, RC-M600 COMMAND HEAD and/or HM-229B/W COMMANDMIC™, with an intercom function available among the main radio and controllers. Maximum operating flexibility anywhere on your boat. *RC-M600: All functions, incl. DISTRESS / HM-229B: All essential functions, without DISTRESS.

Wide Viewing Angle 4.3” Colour TFT LCD

With an integrated AIS receiver, the IC-M605EURO can show real-time AIS vessel traffic information on the display. The AIS combo screen enables you to monitor the AIS plotter during basic operation. You can directly call a selected AIS target from the AIS screen using an individual DSC call.

Menu screen

Night mode

Integrated AIS Receiver

With an integrated AIS receiver, the IC-M605EURO can show real-time AIS vessel traffic information on the display. The AIS combo screen enables you to monitor the AIS plotter during basic operation. You can directly call a selected AIS target from the AIS screen using an individual DSC call.

AIS plotter

Intuitive User Interface

The combination of the directional keypad and soft keys provides simple operation. The most common functions are assigned to soft keys (at the bottom of the display) for quick push function access. The large ten-key pad enables you to smoothly enter channel numbers, MMSI numbers with ID names and so on.

Class Leading Receiver Performance

A weak signal adjacent to a strong signal can be clearly received by the IC-M605EURO. Its commercial grade receiver performance (selectivity and IMD: more than 75 dB) provides reliable communication at all time.

Active Noise Cancelling Technology

The Active Noise Cancelling technology digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.

Last Call Voice Recording

The last call voice recording function automatically saves up to two minutes of an incoming call. Don’t miss any incoming messages.

Private Conversation

With an optional voice scrambler unit, UT-112, the IC-M605EURO provides 32 tone secure conversation. This function is useful when you want to share private information with consort ships.

Provides Clear, Loud Audio

The IC-M605EURO’s internal speaker enhances intelligibility of received calls. The waterproof speaker cone provides superior sound quality with a wide frequency range and a flat frequency response for powerful, yet clear audio.k.

Integrated GNSS Receiver

The GNSS (GPS, GLONASS and SBAS) receiver is integrated in the IC-M605EURO. Position information can be simply received with connection to the supplied GNSS antenna with 5 m cable, UX-241. 30 W Two-Way Hailer and Automatic Foghorn

When connected to the optional SP-37 horn speaker, you can talk with crew on the deck or shore from the radio’s microphone and can hear any reply via the horn speaker. Also available the RX hailer function and four patterns of automatic foghorn.

NMEA 2000™, NMEA 0183/-HS Connectivity

Using NMEA 2000™ connectivity, the radio can exchange GNSS, AIS reports, DSC call information data, radio frequency and PGN list data on the network. NMEA 0183/-HS GNSS position data can also be converted to NMEA 2000™ data for other equipment. … and also waterproof according to IPX8 (60 minutes at 1m depth) │Two and three-channel watch │ AquaQuake ™ function │ Button for direct access to channel 16 and the call channel │ Supplied speaker microphone HM-205RB connectable back │ MMSI and ATIS codes are user-definable can be recorded directly on the device (once, according to applicable regulations)

Supplied Accessories:

Speaker Microphone HM-205RB | GNSS antenna UX-241 | Microphone suspension | Mounting kit | Power cable

Optional Accessories • COMMANDMIC ™ HM-229B including connection cable OPC-1540 (6.1 m length), microphone suspension, plug attachment kit

The optional connection cable OPC-2384 is required! • Connection cable OPC-2384 12-pole to 8-pole; for use with the COMMANDMIC ™ • Extension Cable OPC-1541 (6.1 m in length)

To extend the connection between IC-M605EURO and COMMANDMIC ™ HM-229B. A maximum of two extension cords are permitted for use between the transceiver and the base cable OPC-1540. • Control unit RC-M600 (Command Station)

Includes speaker microphone HM-205RB, connection cable OPC-2383 (10 m), power supply cable, microphone suspension and mounting kit • Extension cable OPC-2377 (10 m)

To extend the connection from IC-M605EURO to RC-M600. Maximum four of these cables allowed. • (funnel) speaker SP-37 (picture above)

Dimension: 200 × 120 × 232 mm / Weight approx. 1050g / Impedance 4Ω / Rated power 30 W (max 40 W) • Loudspeaker Microphone HM-205RB

As supplied with the IC-M605EURO and the RC-M600. • GNSS antenna UX-241 (picture above)

As supplied with the IC-M605EURO, for the GNSS receiver integrated in the radio. • Mounting kit MB-75

To install the IC-M605EURO or RC-M600 in an instrument panel.

Registration number

The approval number of the German Federal Network Agency for this model is: 8310601
